What’s In The Box

• 1 pair of woofers
• 1 pair of tweeters
• 1 pair of speaker grilles
• 1 pair of crossovers
• 1 pair of woofer mounting brackets
• 1 pair of tweeter surface mount accessories
• 1 pair of tweeter flush mount accessories
• 1 pair of tweeter nuts
• 1 pair of tweeter flat washers
• 6 tweeter mounting screws
• 8 woofer mounting screws
• 8 crossover mounting screws
• 8 speed clips
• Foam mounting tape
• Owner’s manual

General Specifications

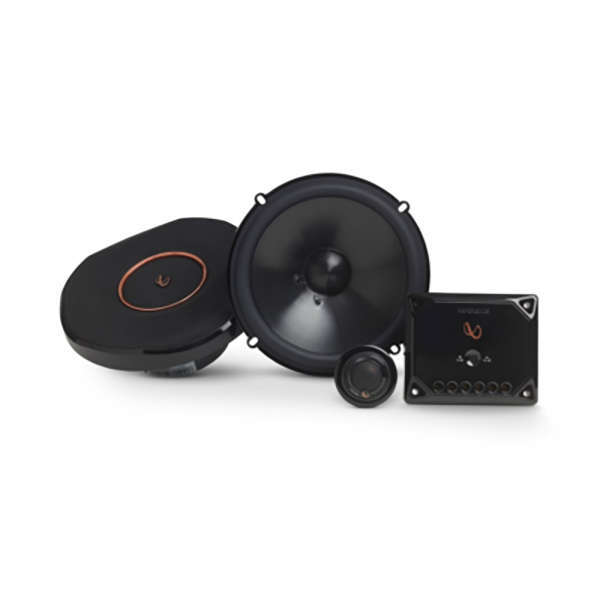

DESCRIPTION: 6-1/2″ (160MM) COMPONENT SPEAKER SYSTEM

POWER HANDLING: 90W RMS, 270W PEAK

SENSITIVITY (@ 2.83V): 93DB

FREQUENCY RESPONSE: 53HZ – 21KHZ

IMPEDANCE: 3.0 OHMS

Features

Edge-driven, textile tweeters

The audiophile-grade tweeters used in Infinity’s new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.

Adjustable tweeter output level

The larger Reference multi-element and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener’s preference.

Plus One™ woofer cone architecture

Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and accurate music reproduction.

Optimized Frame Size

Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

Competitive pricing

Reference speakers provide step-up Infinity sound at mainstream prices.

WARRANTY PERIOD: ONE YEAR
