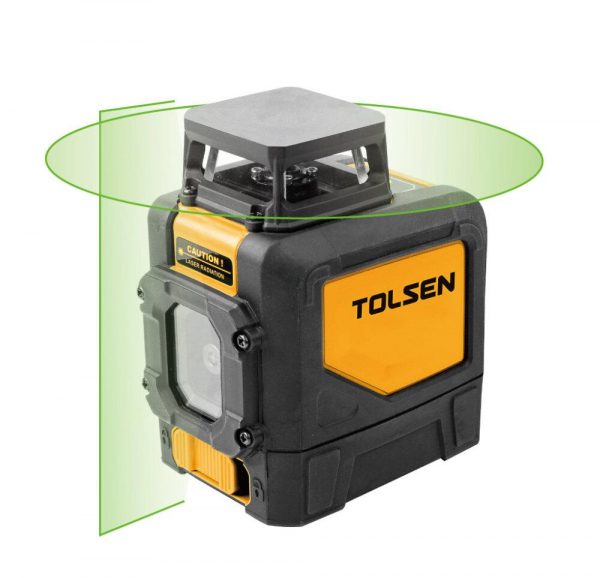

GREEN-BEAM SELF-LEVELING TWO-PLANE LEVELING AND ALIGNMENT-LINE LASER
• Green Beam Laser —more brighter than standard red
beams
• Two 360° Plane（Horizontal and Vertical ） — For a wide
array of level and vertical alignment applications
• Self-levels and indicates out-of-level condition; locks
when switched off
• Manual Mode — Locks lines for use at any angle
• Includes Positioning Device with strong magnets
• Laser unit: Osram
• Wavelenght: 520nm
• Beam Accuracy: H/V Line ±3mm/10m
• Expanded Angle: H&V 360°
• Max. working distance: 30m(without detector)
• Power Supply: 4xAA battery
• Operating time: 1C: 8h /2C: 4h
• Ingression Protection Rate: IP54
• Operating Temperature: -10°C – +50°C
• Storage Temperature: -20°C – +70°C
• Pulse function
• Model Function: switchable manual model
